COMBILIFT Mehrwegestapler

Combilift

Combilift AisleMaster

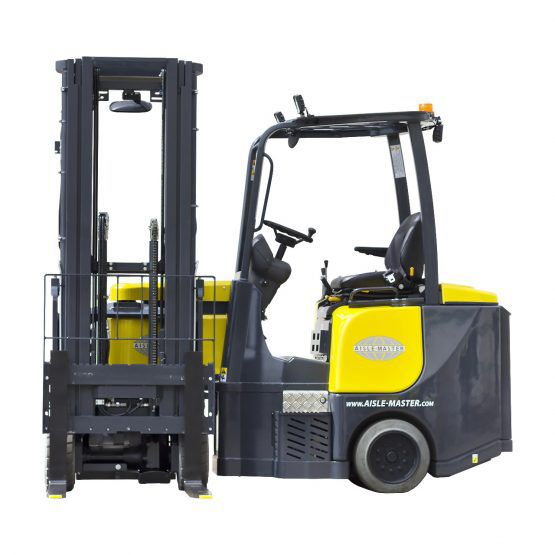

AC Electric Machine

All Aisle Master’s electric powered models now benefit from AC technology as standard. This puts the company firmly at the forefront of battery powered technology in the articulated sector.

Benefits
The main benefits of AC electric include enhanced performance levels, leading to increased pallet movements for greater productivity and improved acceleration and gradeability. There are also fewer wearable parts resulting in low maintenance and reduced downtime.

  • Quick & easy battery removal
  • AC Traction motor (19.5 kw)
  • A choice of 620/775/930 amp-hour capacity batteries
  • Ergonomically designed operator’s cab
  • Reduced energy consumption
Specs:

Mast Range 4300mm to 15000mm
Gradeability (Laden) 12%
Overhead Guard 2270mm
Gradeability (Unladen) 15%
Capacity 1500kg to 2500kg
Battery Capacity Range 620 Ah to 930 Ah
Ground Speed* 16kph
Standard Colour* Yellow and Grey
Lift Speed (Unladen) 0.5 m/s
Truck Weight (with battery) 6400 kg to 7100 kg
Lift Speed (Laden) 0.4 m/s
Truck weight (no battery) 5150 kg to 5510 kg
Front tyre size* 412 x 174 mm
Battery Voltage 48v
Rear tyre size* 457 x 178/229 mm
Standard Seat* KAB

AM-Brochure-US-2018-Digital.pdfBroschüre

Zurück zur Übersicht


Combilift AisleMaster

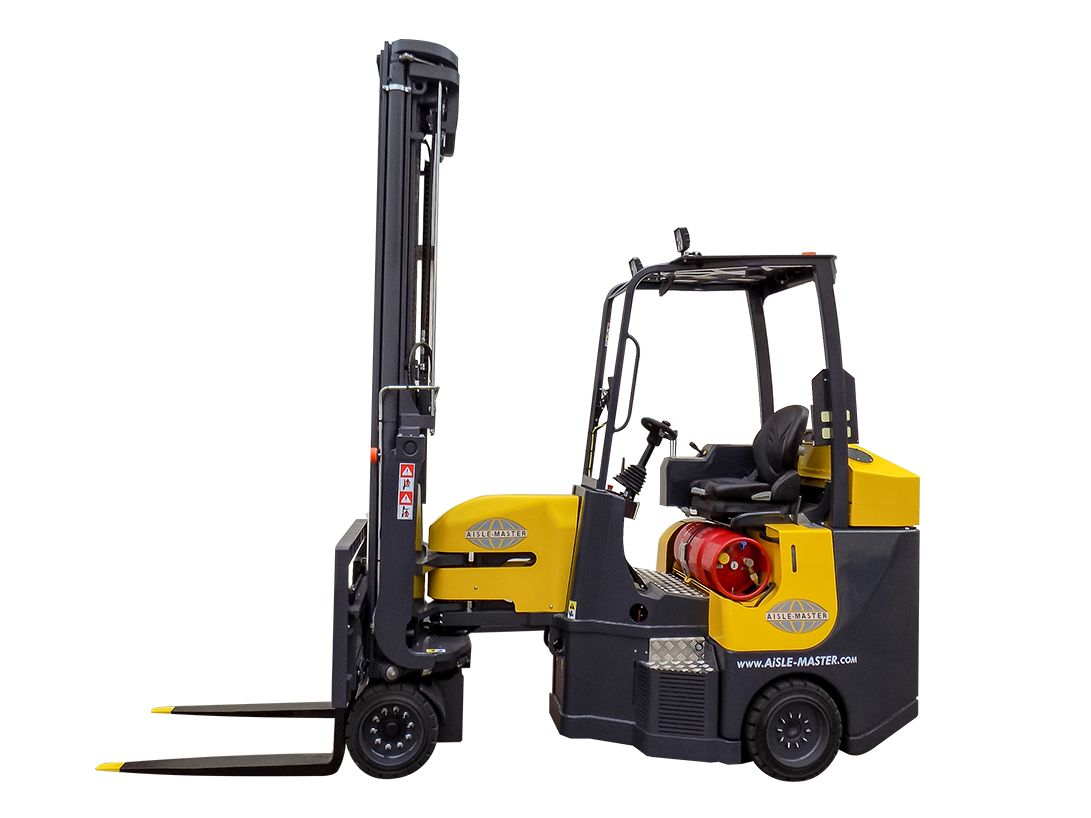

Aisle Master LPG

Aisle Master is acknowledged as the pioneer of LPG power in the articulated forklift sector. Aisle Masters are fitted with a closed loop fuel system as standard, to improve emissions and fuel economy whilst a specially designed engine bay cooling system ensures the effective running of the engine for maximum uptime and reliability.

Benefits of LPG
The main benefit of LPG is reduced emissions levels, ideal for indoor and outdoor operation, making it useful for trucks that are used in almost all industries, even the most emission conscientious. LPG power also offers 24/7 operation with no loss of power.

  • Hydrostatic drive
  • Closed loop fuel system as standard
  • Engine bay cooling system designed to effectively cool the engine compartment, for maximum reliability
Specs:
Mast Range 4300mm to 12400mm
Front tyre size* 406 x 178mm
Overhead Guard 2311mm
Rear tyre size* 457 x 200mm
Capacity 2000kg
Gradeability (Laden) 15%
Ground Speed* 11kph
Gradeability (Unladen) 15%
Lift Speed (Unladen) 0.5 m/s
Engine 3.0l GM Water Cooled
Lift Speed (Laden) 0.4 m/s
Weight of Truck 5150 kg to 5510 kg

AM-Brochure-US-2018-Digital.pdfBroschüre

Zurück zur Übersicht


Combilift AisleMaster

Aisle Master Order Picker

The NEW Aisle Master-OP (AME-OP) is a stand-on electric powered model that combines the advantages of a narrow aisle articulated forklift and an order picker for versatile operation in warehousing applications.

Benefits
The main benefits of AC electric include enhanced performance levels, leading to increased pallet movements for greater productivity and improved acceleration and gradeability. There are also fewer wearable parts resulting in low maintenance and reduced downtime.

  • Quick & easy battery removal
  • AC Traction motor (19.5 kw)
  • A choice of 620/775/930 amp-hour capacity batteries
  • Ergonomically designed operator’s cab
  • Reduced energy consumption
Mast Range 4300-12100mm
Step Height 280mm
Lift height 4300mm
Fork Carriage Width 980mm
Height Mast Closed 1365mm
Mast Tilt (Back/Forward) 3//1 Degrees
Height Mast Raised 5174mm
Capacity 2000kg
Overall Length 2780mm
Ground Speed 8km/h
Ground Clearance 87mm
Lift Speed Laden/Unladen 0.4/0.5 m/s
Overhead Guard Height 2286mm
Front Tyre Size 412x174mm
Chassis Width – Rear 1400mm
Rear Tyre Size 457×228mm
Chassis Width – Front 980mm
Gradeability 12%/15%
Load Centre 600mm
Battery Voltage 12%/15%
Wheel Base 1733mm
Truck Weight Less Battery 6165kg

AM-Brochure-US-2018-Digital.pdfBroschüre

Zurück zur Übersicht


Combilift AisleMaster

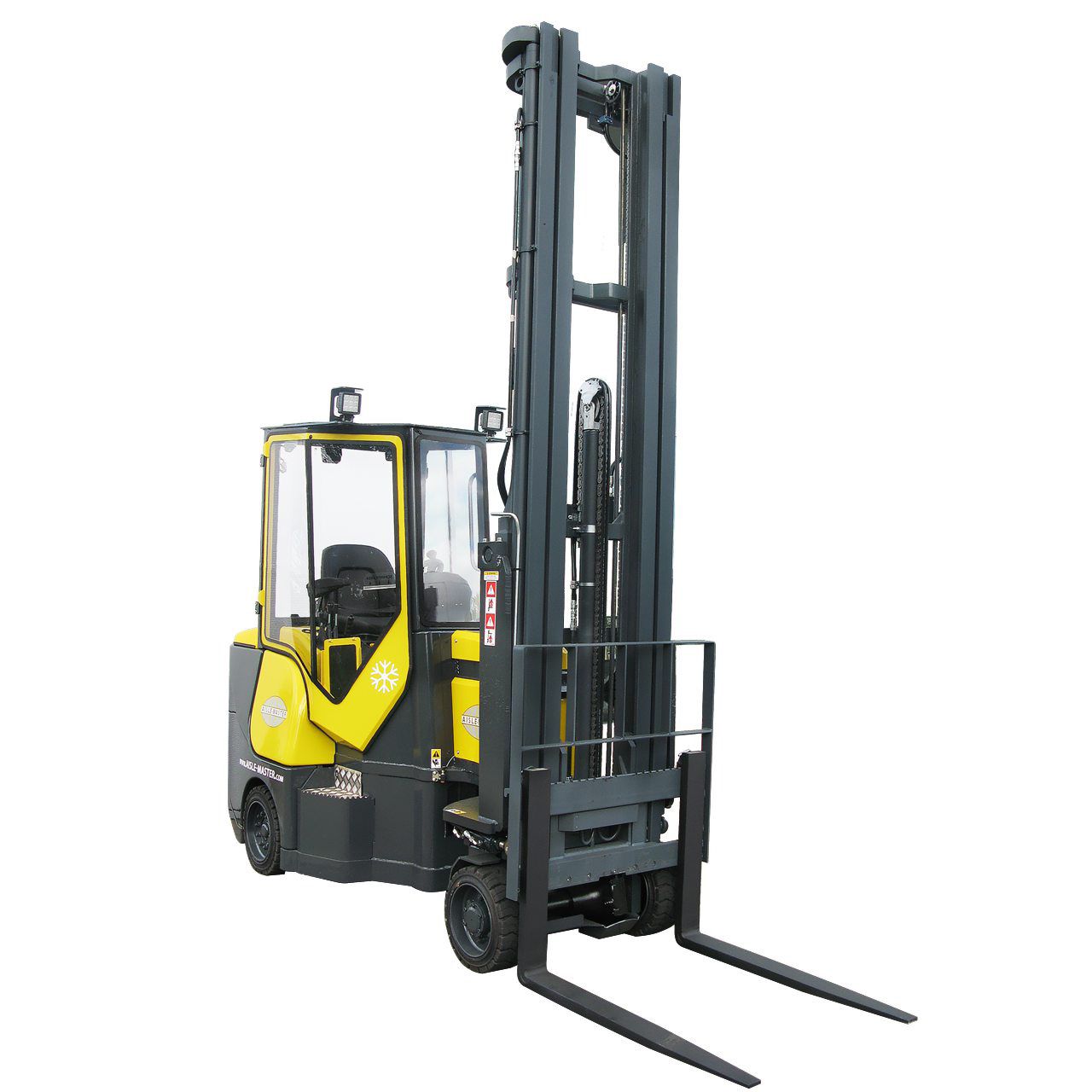

Cold Store Aisle Master

The cost of cold store and temperature controlled warehousing operations is much higher than that of ambient warehousing, making space saving more crucial than ever. Aisle Master’s cold store model keeps you warm and productive in a cold climate.

Collaboration with some of the major names in the industry resulted in a model developed specifically for this sector’s exacting requirements whilst guaranteeing optimum storage density. The fully enclosed, high visibility cab keeps drivers warm, reducing the time needed for breaks and increasing productivity.

  • Heated cab windows eliminate the build-up of condensation when driving between different temperatures in a building
  • Allocated areas in the cab enable the use of a bar code scanner
  • Low energy LED work lights as standard

AM-Brochure-US-2018-Digital.pdfBroschüre
