COMBILIFT Mehrwegestapler

Combilift Straddle Carrier

Combi-MG

The Efficient Solution for Oversized & Awkward loads.

The Combi-MG Mobile Gantry is the perfect solution for handling and conveying extremely large loads typical of industries such as shipping, aerospace, wind turbine, large scale civil industry, precast concrete and large scale structural steel industries.

• Capacity 20,000 kg – +125,000 kg
• Key Feature Remote Controlled
• Flexible Available in Multidirectional
• Engine Available in Diesel or Electric Power

RELIABLE AND COST EFFECTIVE
Highly customisable to fit any load handling challenge. The Combi-MG is highly adaptable to your needs and can be built to dimensions specifically to suit your application. It can be fitted with a very wide range of lifting accessories to suit any application or industry. The Combi-MG can be equipped with a rotating C-hook for handling coils, which can be operated to roll in both directions and in manual and automatic operation. With capacities ranging from 8o tonne, it’s a safe choice to go with the Combi-MG.

HIGHLY CUSTOMISABLE TO FIT ANY LOAD HANDLING CHALLENGE.
The Combi- MG can be operated in tandem mode enabling the moving of extremely long loads such as wind turbine blades or aerospace components with high levels of control and in the safest manner available. The six mode, multi-directional steering allows precise and safe transport of materials. The 6 steering options making it a highly flexible and effective method of conveyance.

THE COMBI-MG INCREASES STORAGE SPACE
It can operate in narrow aisles, of just 1.5 m, allowing for increased storage and its ability to handle out of gauge loads including concrete castings, beams, and culverts more with greater speed and safety mean considerable savings can be achieved.

A GANTRY TO WORK IN ANY ENVIRONMENT
The combi-MG mobile gantry has a telescopic function allows loads to be raised and placed up onto trailers etc. and gives it the ability to reduce its height to enter low doorways. When moving loads of extreme size, being able to position them accurately and safely is critical for avoiding damage or injury. The Combi-MG is equipped with full side-shift to both left and right and the independent lift enables precise placement of the load. The remote control provides the operator with the ability to precisely control the gantry from a safe and advantageous viewpoint.

THE 6 STEERING MODES ARE
The, six mode, multi-directional steering allows precise and safe transport of materials, making it a highly flexible and effective method of conveyance.

• Front Wheel Steer
• Rear Wheel Steer
• Four Wheel Steer
• Crab Steer
• Carousel Steer
• Four Way Multi-Directional

Zurück zur Übersicht

---

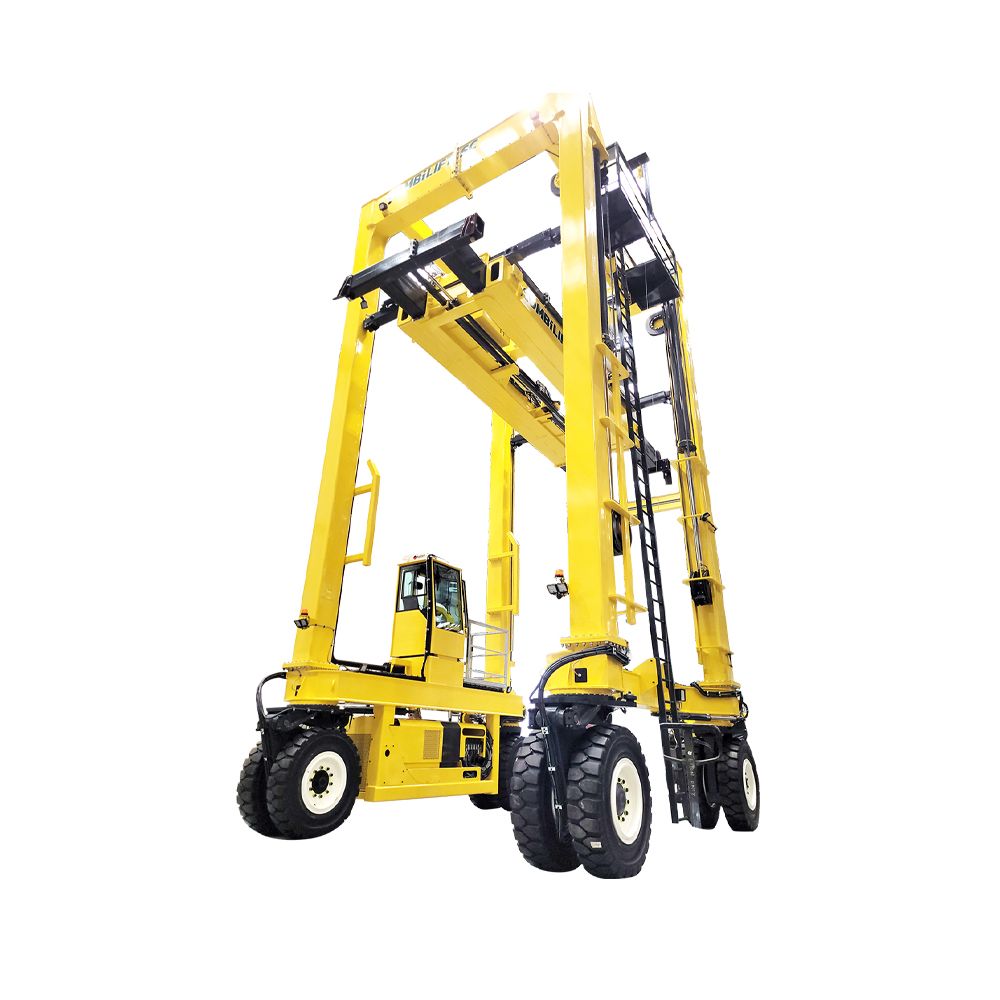

Combilift Straddle Carrier

Combi-SC

The Cost Effective Solution For Handling Containers & Oversized Loads

Combilift’s range of straddle carriers and mobile gantry provide safe, efficient solutions for even the most extreme load handling situations. Distribution, shipping, aerospace, steel fabricators, wind turbines and precast concrete – there’s no load too large or heavy for these workhorses.

• Capacity 20,000 kg – +125,000 kg
• Customisable to suit your needs
• Lift Height available up to 10m
• Engine available in Diesel or Electric Power
• Highly Customisable
• Automatic attachment to handle ALL products
• Front and rear independent sideshift
• Remote control option available
• Low ground pressure when fully loaded
• Reduced fuel/energy Consumption
• No brake maintenance
• Travels in/out of warehouse with ease
• Rough terrain & ramp friendly
• Easy to service – ground accessible engine
• 360° degree vision when load is lifted
• Exceptional 3-wheel manoeuvrability
• Side shift front & rear
• Soft solid puncture proof tyres
• Ergonomically designed cab for comfort
